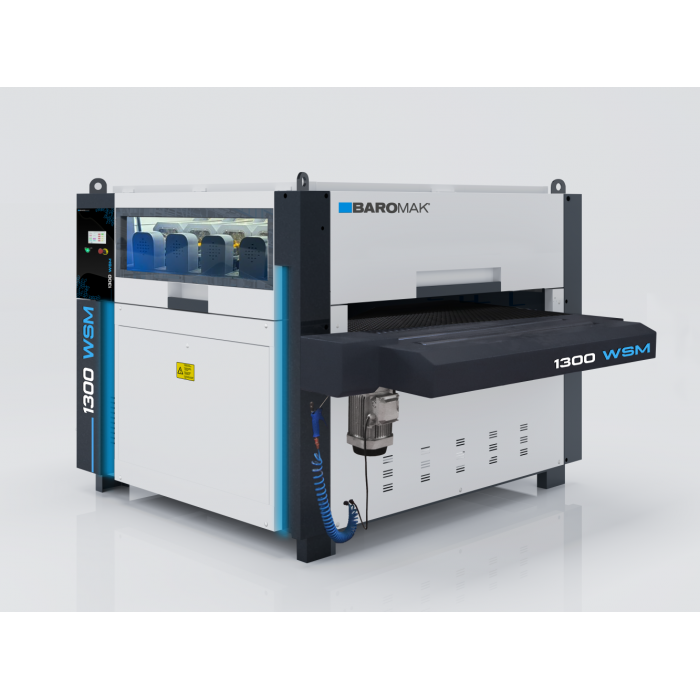

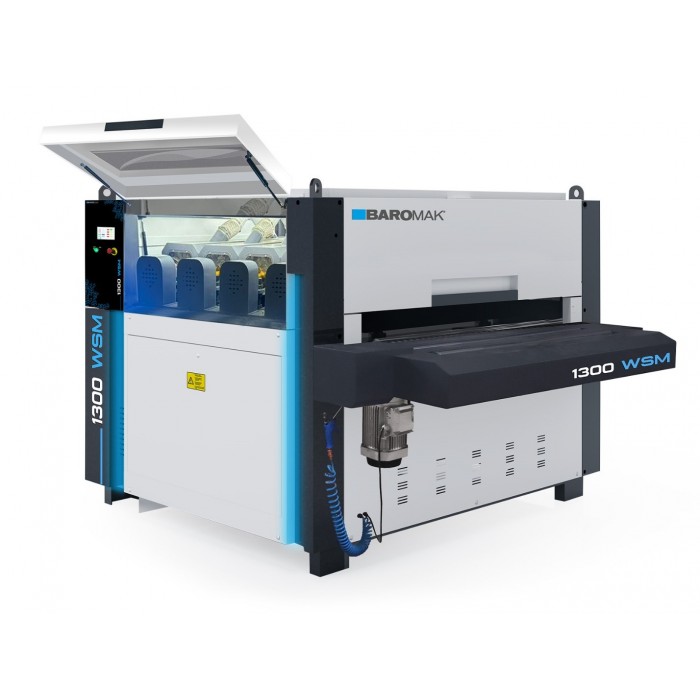

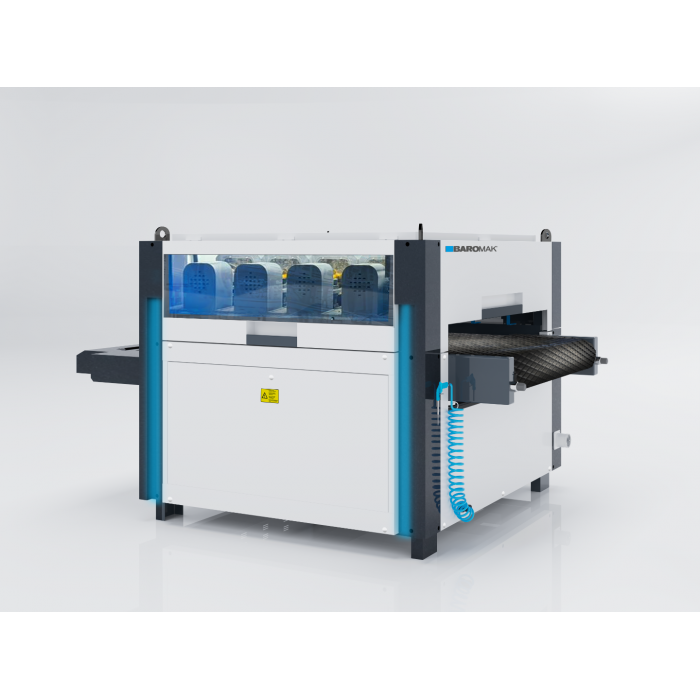

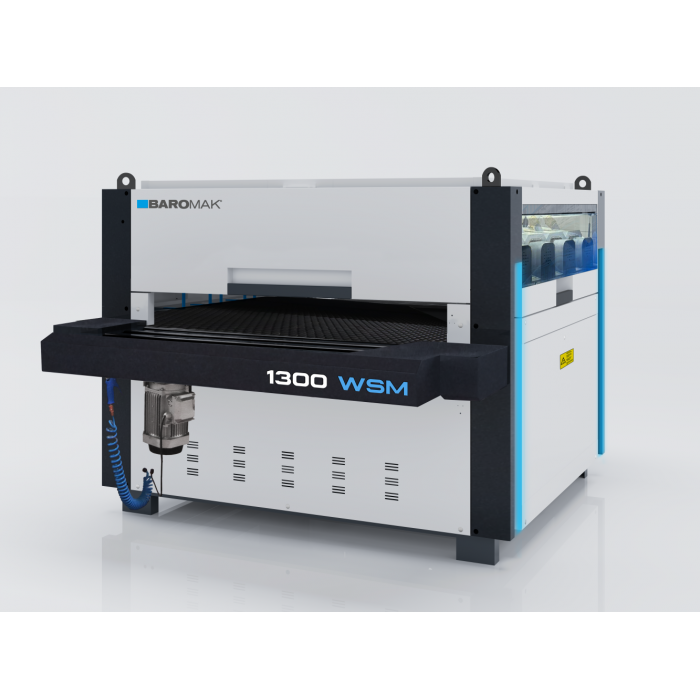

1300 WSM OTOMATİK TELLEME MAKİNASI
DOKUNMATİK PANEL: 10 inch genişliğinde dokunmatik ekranlı ve kullanıcı dostu arayüz ile herkes için kolay kullanım sunar.
4 FARKLI İSTASYON YAPISI: 2 adet telleme, 1 adet sert plastik telleme ve 1 adet özel fırça zımparadan oluşan 4 bölümlük istasyon yapısıyla mükemmel doğal eskitme görünüm sağlar.
HIZ AYARLI İSTASYONLAR: Hız ayarlı istasyonlar sayesinde istenilen seviyede eskitme görüntüsü verilebilir.
HIZ AYARLI KONVEYÖR SİSTEMİ: Otomatik hız ayarlanabilen konveyör sayesinde yüzey derinliği ayarlayabilme imkanı.
TOUCHSCREEN PANEL: 10-inch wide touchscreen with a user-friendly interface offers ease of use for everyone.
4 DIFFERENT STATION STRUCTURES: A four-section station structure consisting of two wire brushing stations, one hard plastic wire brushing station, and one special brush sander provides a perfect natural aged look.
SPEED-ADJUSTABLE STATIONS: Speed-adjustable stations allow for the desired level of aged look.
SPEED-ADJUSTABLE CONVEYOR SYSTEM: Automatic speed-adjustable conveyor allows for surface depth adjustment.
TEKNİK DETAYLAR / TEKNICAL DETAILS |
1300 WSM | |
|---|---|---|
| Toplam Ağırlık / Total Weight | 1.893 KG | |
| Ölçüler / Dimensions | 2235*2020*1610 mm | |
| Toplam Güç / Total Power | 24.05 KW | |
| Voltaj / Voltage | 400 V | |
| Max. Ürün Genişliği / Maximum Product Width | 1300 mm | |
| Max. Çalışma Uzunluğu / Maximum Working Length | ≥ 450 mm | |
| Min. Çalışma Uzunluğu / Minimum Working Length | ≥ 330 mm | |
| Max. Ürün Kalınlığı / Maximum Product Thickness | 160 mm | |
| Min. Ürün Kalınlığı / Minimum Product Thickness | 3 mm | |
| Max. Konveyör Hızı / Maximum Conveyor Speed | 20m/dk | |
| Zımpara Ünitesi Rulo Çapları / Sanding Unit Roller Diameters | 190 mm | |
| Konveyör Bant Motor / Conveyor Belt Motor | 4.0 KW | |
