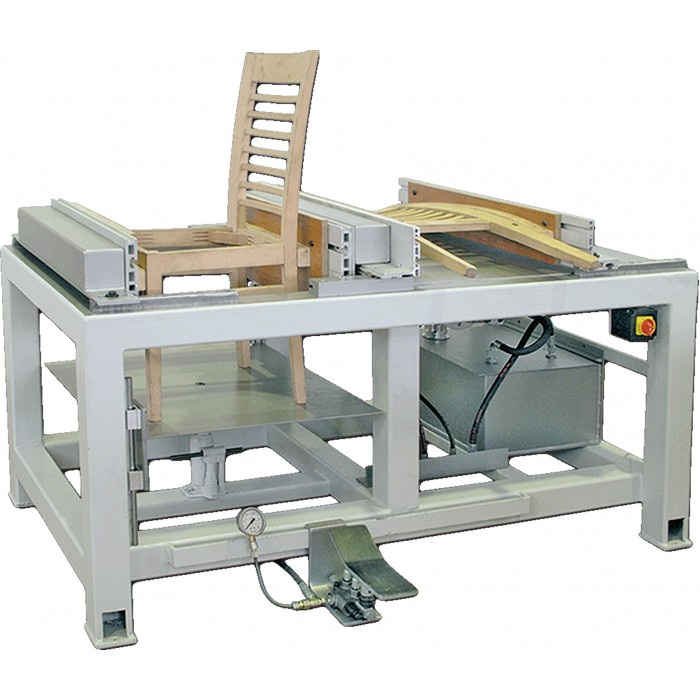

TP.24 SANDALYE TOPLAMA PRESİ

TP.24 SANDALYE TOPLAMA PRESİ
TP.24 // CHAIR
PARTS ASSEMBLY TABLE // SANDALYE TOPLAMA PRESİ
TP.24 Uzun veya kısa ayakları birleştirme, birleşmiş uzun ve
kısa ayakları birleştirme olmak üzere 2 farklı istasyondan oluşur. Manuel
olarak kontrol ediliyor olması anında müdahale şansını artırır. Preslerin
kontrolü pedal ile sağlanmaktadır. Kolay kullanışı ve pres baskı kalitesi ile
sağlam ürün çıktısı garanti eder.
TP.24 To join the long or short legs, to join the long and
short legs together. It consists of 2 different stations. Being controlled
manually increases the chance of immediate intervention. The control of the
presses is provided by the pedal. Easy to use advantage.
TEKNİK DETAYLAR (TECHNICAL DETAILS)
TP.24
TP.24.L
Kesilebilir Ölçüler (Cutting Length)
2 adet (2 pcs)
2 adet (2 pcs)
Ayak Pres Alanı min./maks. (Leg Pressing Area min./max.)
470 / 550 mm
760 / 840 mm
Gövde Pres Alanı min./maks. (Body Pressing Area min./max.)
510 / 590 mm
910 / 990 mm
Gövde Pres Alanı.2 min./maks. (Body Pressing Area.2 min./max.)
-
-
Çalışma Sistemi (Working System)
Hidrolik (Hydraulic)
Hidrolik (Hydraulic)
Motor (Motor)
1.5 kW – 1500 d/d
1.5 kW – 1500 d/d
Ölçüler (Dimensions)
900 × 2200 × 950 mm
1200 × 2400 × 950 mm
Ağırlık (Weight)
550 kg
650 kg
