ALYA GÖNYE KESME MAKİNASI
ALYA GÖNYE KESME MAKİNASI

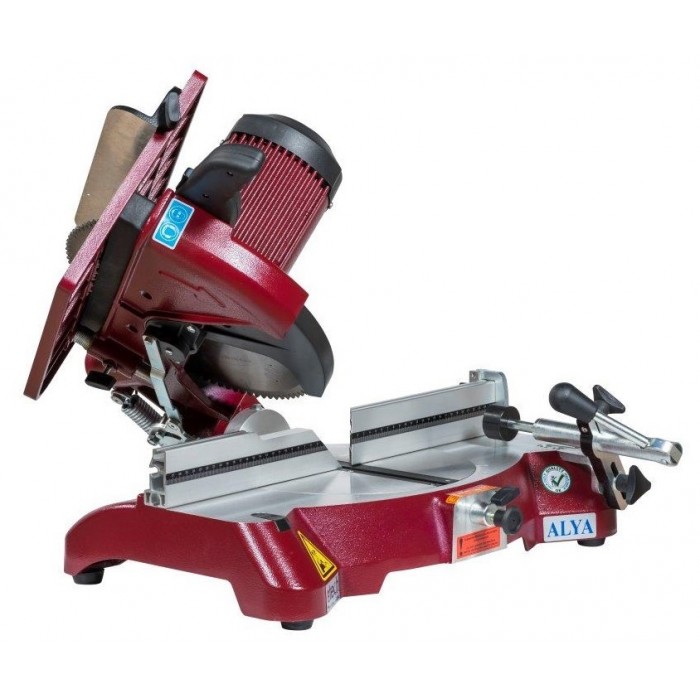

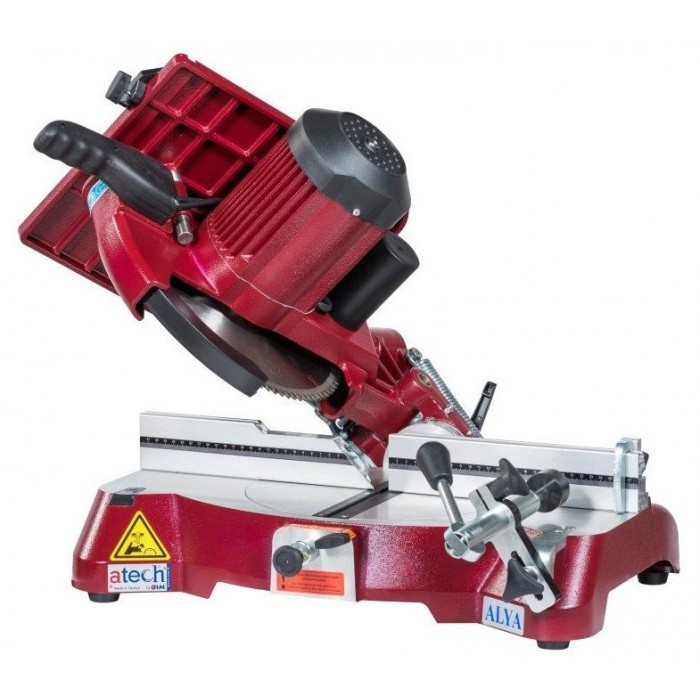

Portatif Yatarlı Kesme Gönye Makinesi, Standart derecelerde ve her türlü ara derecelerde Alüminyum, PVC ve Ahşap Profil Gönye kesim işlemleri için CE standartlarında yerli olarak üretilmiştir.
Portable Tilting Cutting Miter Machine is manufactured domestically in accordance with CE standards for Aluminium, PVC and Wooden Profile Miter cutting operations at standard degrees and all kinds of intermediate degrees.
- Sol tarafa yatan ve 45°’de sabitlenebilir kafa - Head tilts to the left and can be fixed at 45°
- Yükseltisi olmayan ve talaş girmesini engelleyen pürüzsüz yüzey - Smooth surface with no elevations and prevents chip ingress
- Standart ve ara derecelerde kesim - Standard and intermediate cutting angles
- Ekstrüzyon profilden yapılmış olan gönye dayama sistemi - Extruded profile miter guide system
- Her yöne dönebilen ve tek hareketle sabitlenebilen kullanıcı dostu mengene - User-friendly vice that rotates in all directions and locks in place with a single movement
TEKNİK DETAYLAR / TEKNICAL DETAILS |
ALYA GÖNYE KESME MAKİNASI | |
|---|---|---|
| Kesme Motoru/ Cutting Engine | 0.8 kW, 230 V – 1,2 kW – 400 V, 50/60 Hz | |
| Testere Ölçüsü/ Saw Size | D=305 mm d=30-32 mm | |
| Testere/ Saw | 3000 r.p.m | |
| Paket Boyutu/ Package Size | 60 x 40 x 47 cm | |
| Makine Boyutu/ Machine Size | 56 x 43 x 36 cm | |
| Makine Kg/ Machine Kg | 28 kg | |
